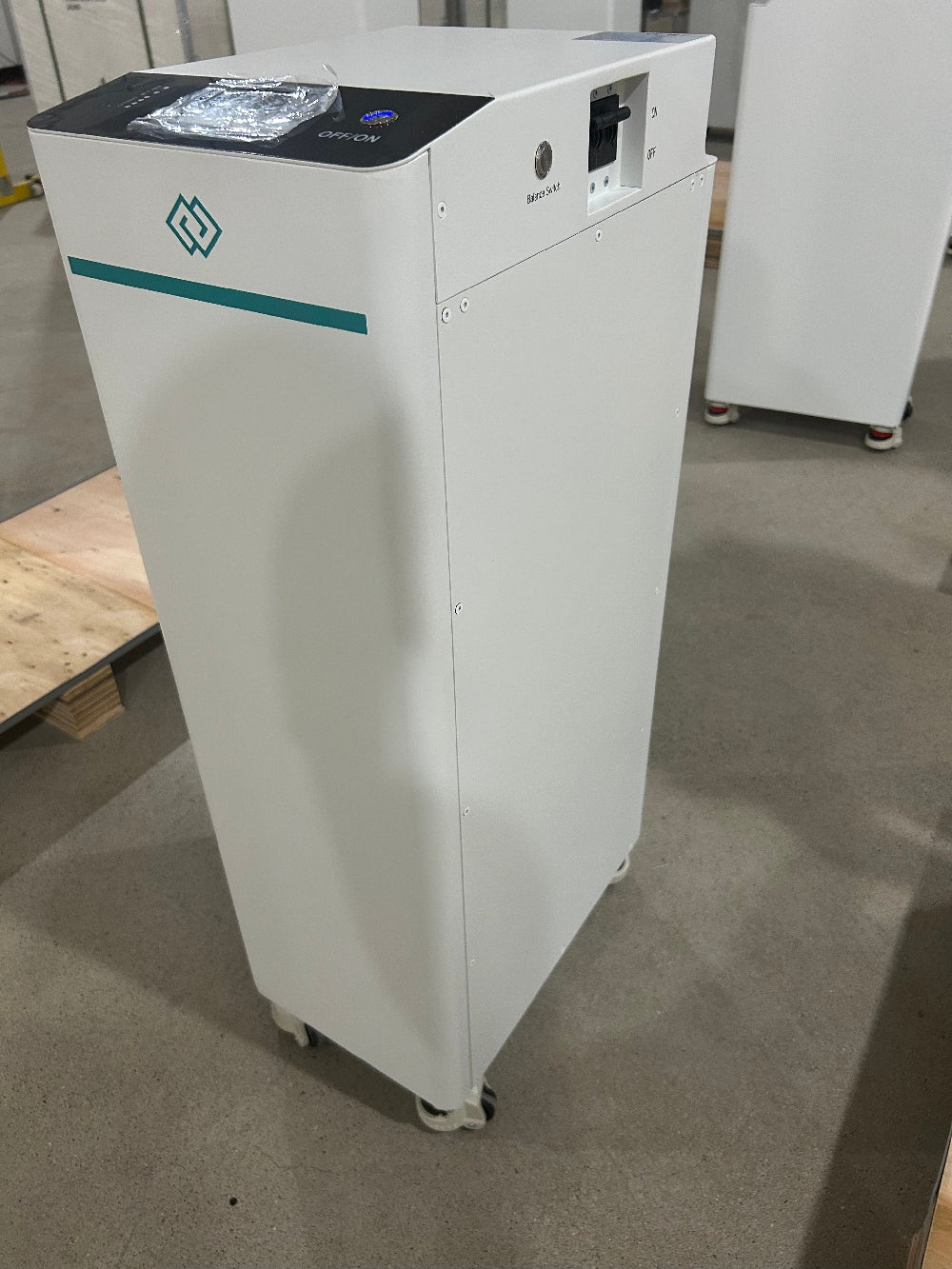

SEPLOS V4- With Battery Cell 51.2V 314ah LiFePO4 Battery System 8000 cycles Battery DIY Kit

🚀Free Shipping | No tax | Ship from EU

Spec-Driven Perfection: Every feature is engineered for home efficiency, safety, and longevity, as proven in the technical specs!

🌟 What features are upgraded in V4 compared to V3?

1. Ultra-Sleek 7-Inch Color Touchscreen Display

The Rimdin-280L V4 boasts a vibrant, full-color touchscreen LCD panel positioned at the top of the unit for effortless monitoring. Navigate real-time data like voltage, current, SOC (%), and temperature with intuitive gestures.

2. UL-Certified 250A DC Circuit Breaker

This heavy-duty component ensures stable performance during peak loads while safeguarding against overcurrents, short circuits, and surges.

3. Compact Design: Save Space, Maximize Power

Reduces the footprint by 30%, making the V4 perfect for tight spaces. Its streamlined form factor is ideal for 2–6 parallel configurations, allowing homeowners to scale energy storage without sacrificing floor space.

4. Top-Mounted LCD for On-the-Spot Control

Unlike traditional side-mounted displays, the V4 features a top-mounted touchscreen that positions key data at eye level, making it more ergonomic.

5. Backward Compatibility with V3 Systems

Don’t replace—upgrade!

The V4 is fully compatible with existing Seplos V3 batteries, eliminating costly system overhauls.

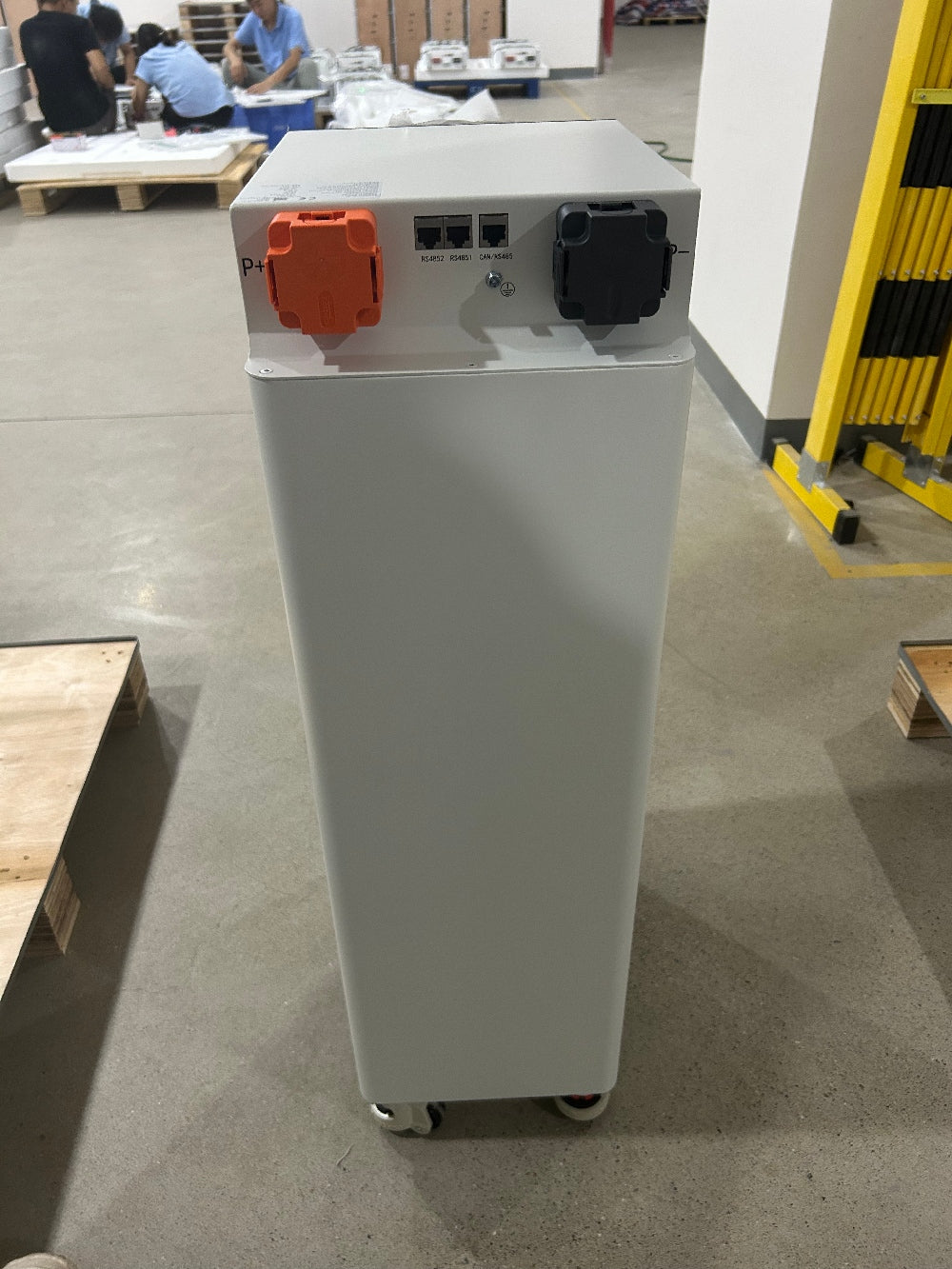

6. Simplified Parallel Wiring

We’ve redesigned the wiring connections for hassle-free scalability.

7. Stylish Color Options

Match your home’s personality.

Parameter Name	Value/Configuration
Battery Configuration	1P16S
Rated Voltage	51.2V
Operating Voltage Range	43.2V~58.4V
Rated Capacity	280Ah
Rated Energy	14.34kWh
Standard Charge/Discharge Current	100A/200A@25±2℃
Maximum Charge Current	200A@25±2℃
Maximum Discharge Current	200A@25±2℃
Operating Ambient Temp (Charge)	0~40℃
Operating Ambient Temp (Discharge)	-20~40℃
Storage Temperature & Humidity	-10℃~35℃ (1 month) 25±2℃ (3 months) 65%±20%RH
Dimensions (L×W×H)	(898.5+10)×415×260 mm
Weight	119.5kg±3kg
Cycle Life	8000 cycles@25℃ 50A charge/discharge 80% DOD
IP Rating	IP20
Communication Method	CAN&RS485
Altitude	0-3000m
Humidity Range	5~95%

🔥 Top 5 Reasons to Choose V4 for Your Home

🌞 Solar Supercharger:  Store Sunshine Like a Pro

Harness every ray with specs-backed solar optimization:

• 1P16S LiFePO4 Cells: 51.2V voltage stability for seamless inverter integration (no voltage drops!).
• 200A Max Charge/Discharge: Fill the battery in 7 hours on sunny days—twice as fast as competitors! ☀️
• Static & Charge Balancing: Extends lifespan by auto-balancing cells during charging (starts at 3350mV).



⚡ Intelligent BMS:   With  Active Balancer

• Voltage & Temperature Guard:

1. 16-Cell Voltage Monitoring (±20mV accuracy) ensures no cell overcharges.
2. 4 Temp Sensors + Ambient/MOS Sensors shut down charging if temps exceed 55°C or drop below -10°C. ❄️

• Instant Fault Response:

1. Short-Circuit Protection: Cuts power in milliseconds if wiring fails.
2. Overcurrent Lock: After 5 faults, auto-locks until charger resets—prevents fire risks! 🔥

📊 Real-Time Monitoring: Control from Your Couch

Tap into the spec’s smart communication tools:

• Bluetooth & CAN/RS485: Check battery health, SOC, and faults via phone or PC. 📱
• 500 Error Logs: Diagnose issues instantly (e.g., "Cell 5 Overvoltage—June 12, 10:30 PM").

**5. 💪 8,000 Cycles = 10+ Years of Trust

🛡️ Ultra-Safe for Families & Pets

LiFePO4 chemistry is non-toxic, fire-resistant, and stable—no explosions or leaks! 🔒

1. EU Certification （CE）
2. Smart BMS Protection: Stops charging if temps hit 55°C ❄️ or voltage spikes.
3. Childproof Design: IP20 rating shields against dust and accidental spills.
4. Zero Maintenance: No fumes, no mess!


❄️ Built for All Seasons—Even Freezing Winters

Specs reveal cold-weather resilience:

1. Low-Temp Heating: Auto-activates at 0°C when charging (keeps cells healthy in garages/basements!).
2. -20°C Discharge Ability: Power your fridge during snowstorms! 🌨️

💰 Slash Energy Bills by 70%

Store cheap solar energy by day, use it at night! 🌙

1. 17kWh Capacity: Powers a 3-bedroom home for 20+ hours!
2. 8,000+ Cycles: Lasts 10+ years (even at 80% daily use)—payback in just 3 years!
3. Peak Shaving: Avoid expensive grid power during high-demand hours.

🏠 How Rimdin-280L’s Specs Solve Home Energy Problems ？

Home Challenge	Spec-Backed Solution	Your Benefit
High Electricity Bills	17kWh storage + 8,000 cycles	Save $1,500+/year with solar shifting!
Blackout Anxiety	200A discharge + instant BMS	Lights stay on in <2 seconds! 💡
Space Constraints	Compact size	Fits snugly in garages or utility rooms!
Winter Power Failures	-20°C discharge + auto-heating	Reliable heat & lights even in blizzards! ❄️



⚠️ Critical Spec-Backed Warnings for Homeowners

• DO NOT Mix Batteries: Specs strictly forbid mixing brands/models (Section 1).
• NO Series Connections: Parallel only (max 16 units).
• Avoid Water & Heat: IP20 protects against dust, but keep away from pools/heaters! 💦
