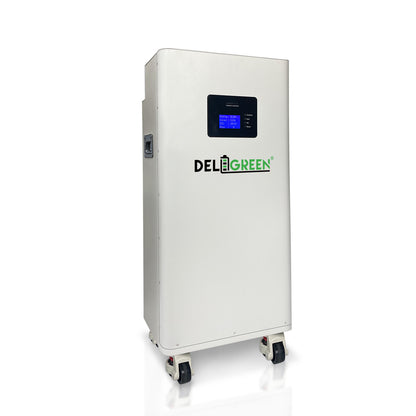

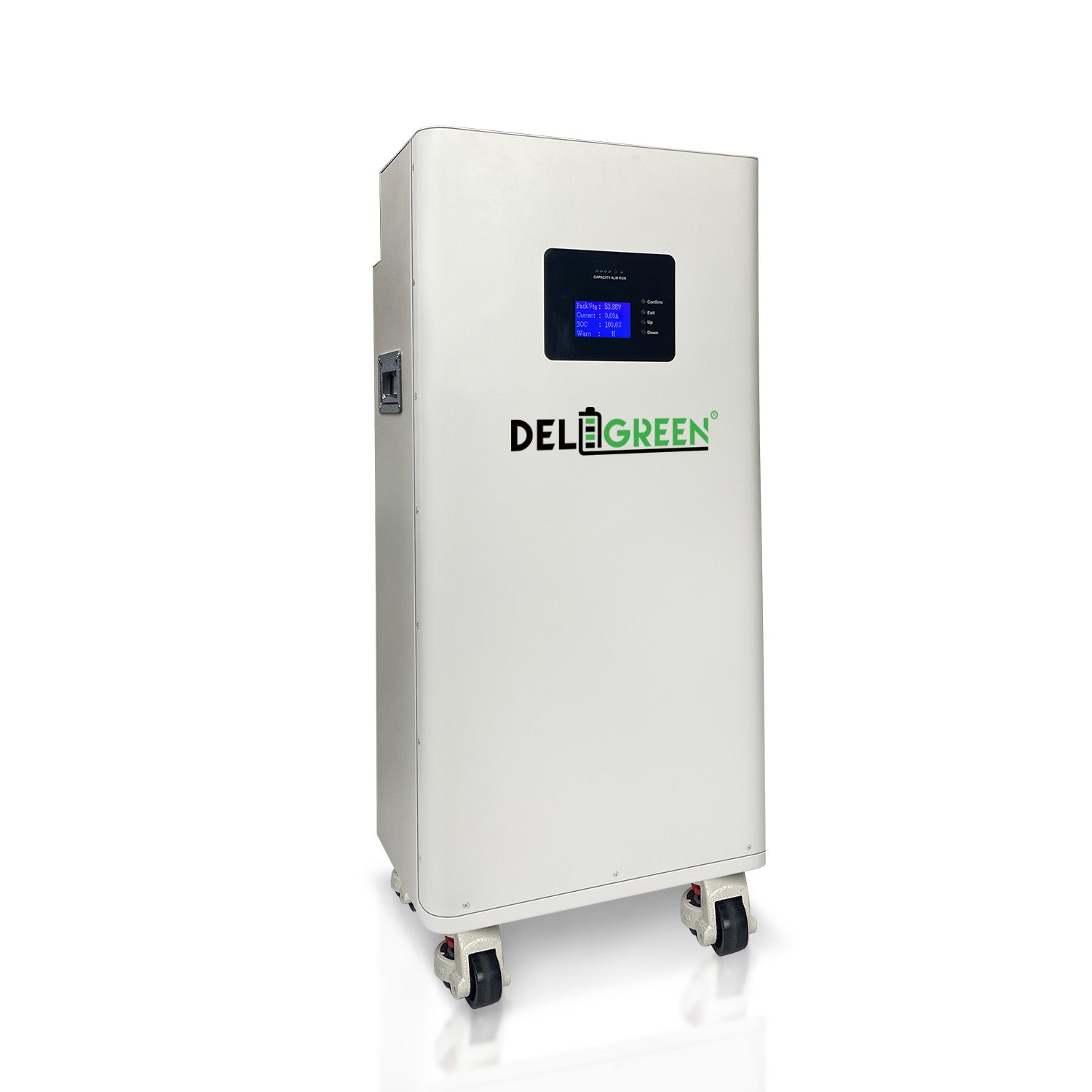

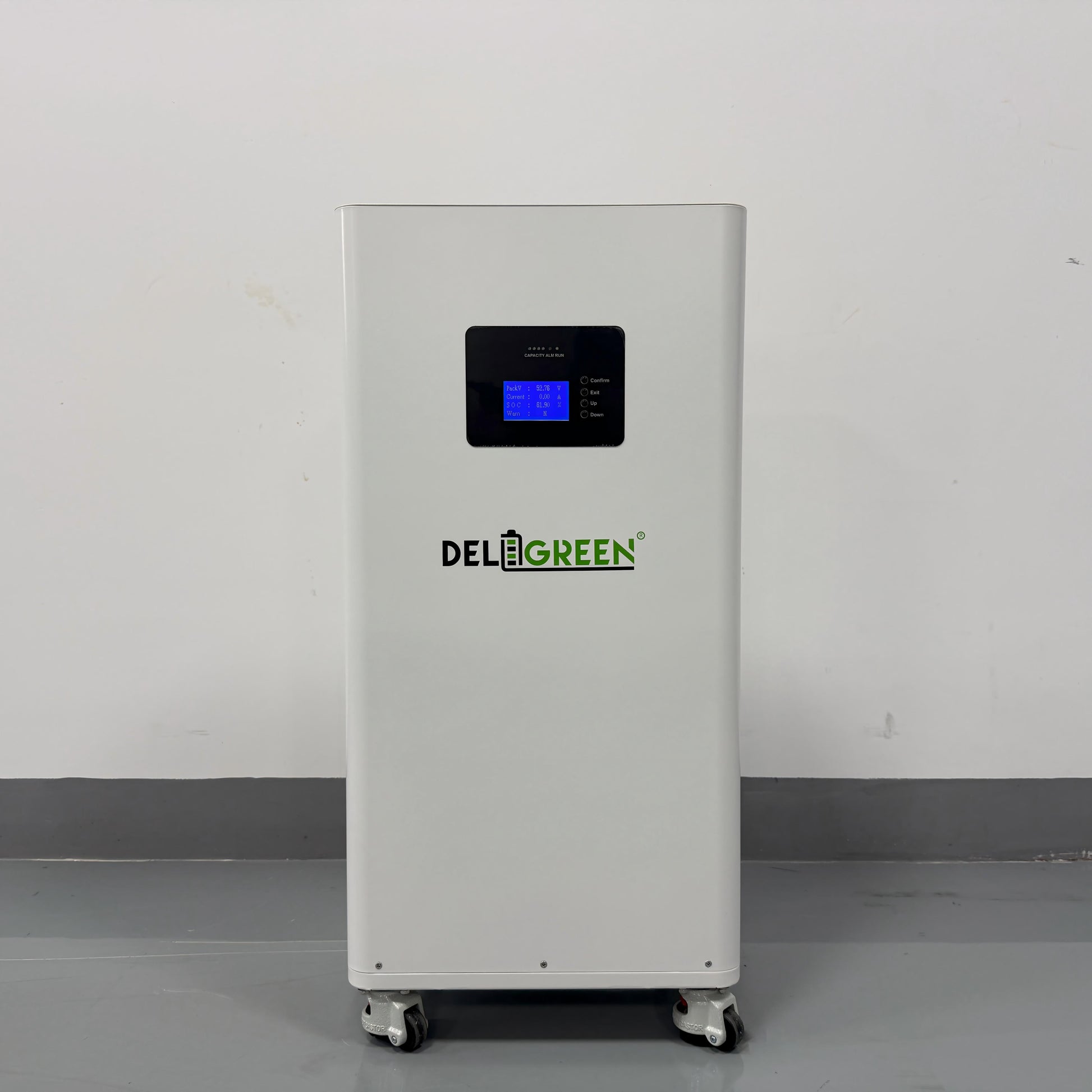

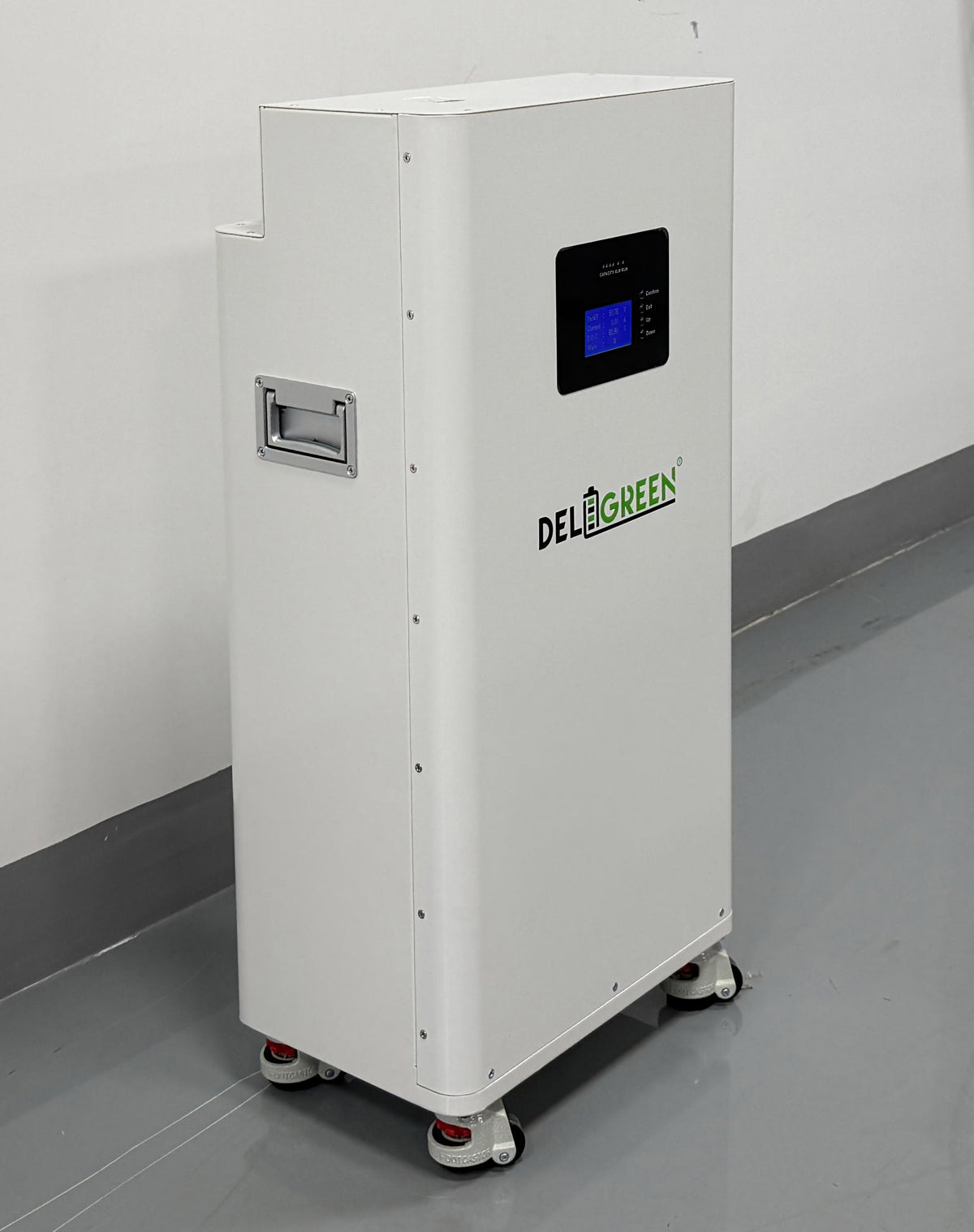

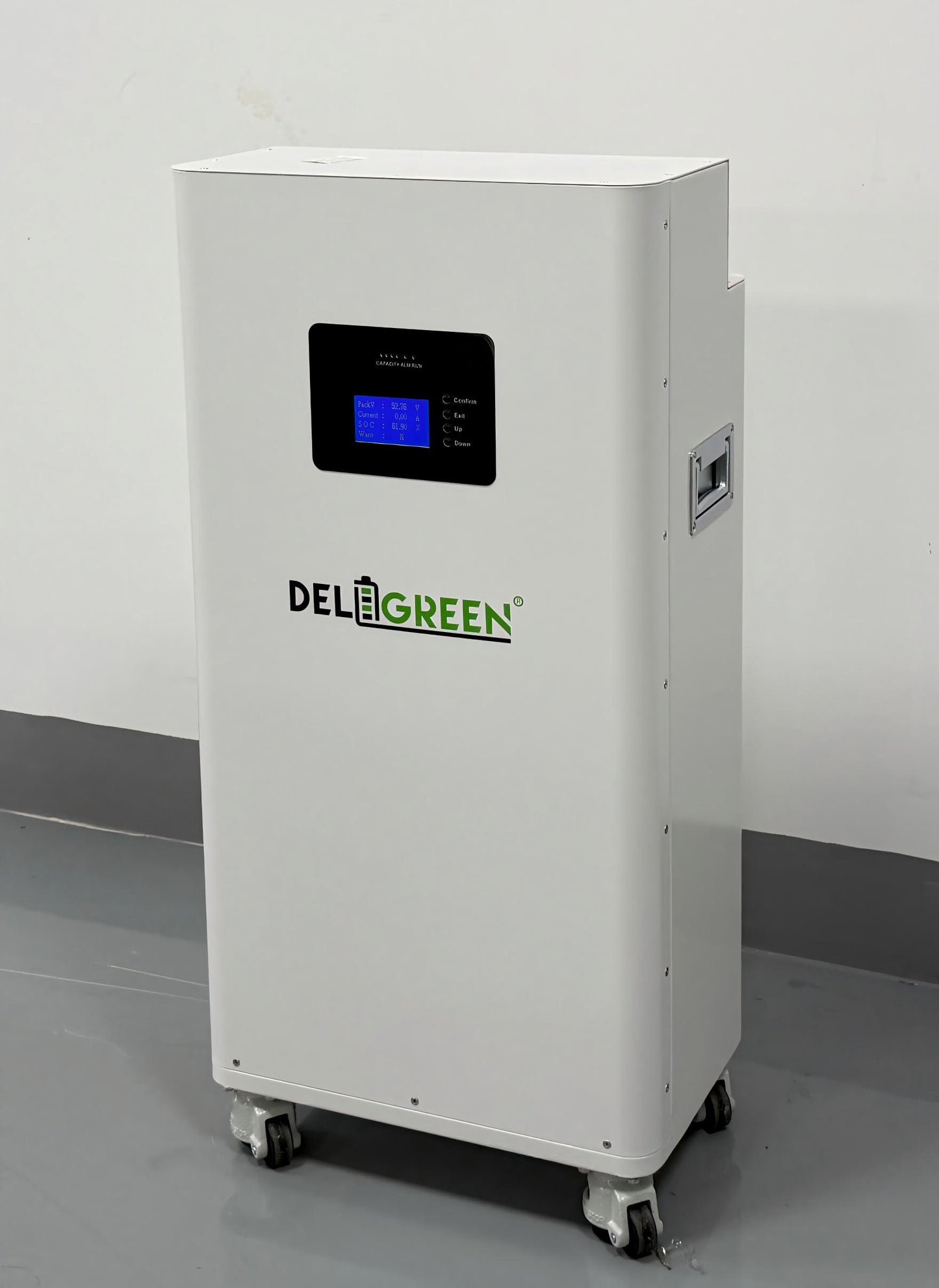

Pre-assembled 16kWh 51.2V 314AH LiFePO4 Solar Syestem Battery Pack ,Built-in BMS , air circuit breaker, fire extinguisher
Pre-assembled 16kWh 51.2V 314AH LiFePO4 Solar Syestem Battery Pack ,Built-in BMS , air circuit breaker, fire extinguisher
Couldn't load pickup availability
Free Shipping | No tax | Door to Door
Triple-Safeguard Battery Pack
Tier 1 safeguards ：Sep|os same style BMS.
It precisely monitors every cell's voltage and charging/discharging currents (±10mV / ±1%!), providing instant protection against over/under-voltage, dangerous over-current (with smart limiting), and short circuits.
Plus, intelligent cell balancing keeps your batteries healthier and lasting longer. All critical safety settings are adjustable.
Please click the link for detailed functions: https://deligreencs.com/pages/home-energy-storage-lithium-lfp-nmc

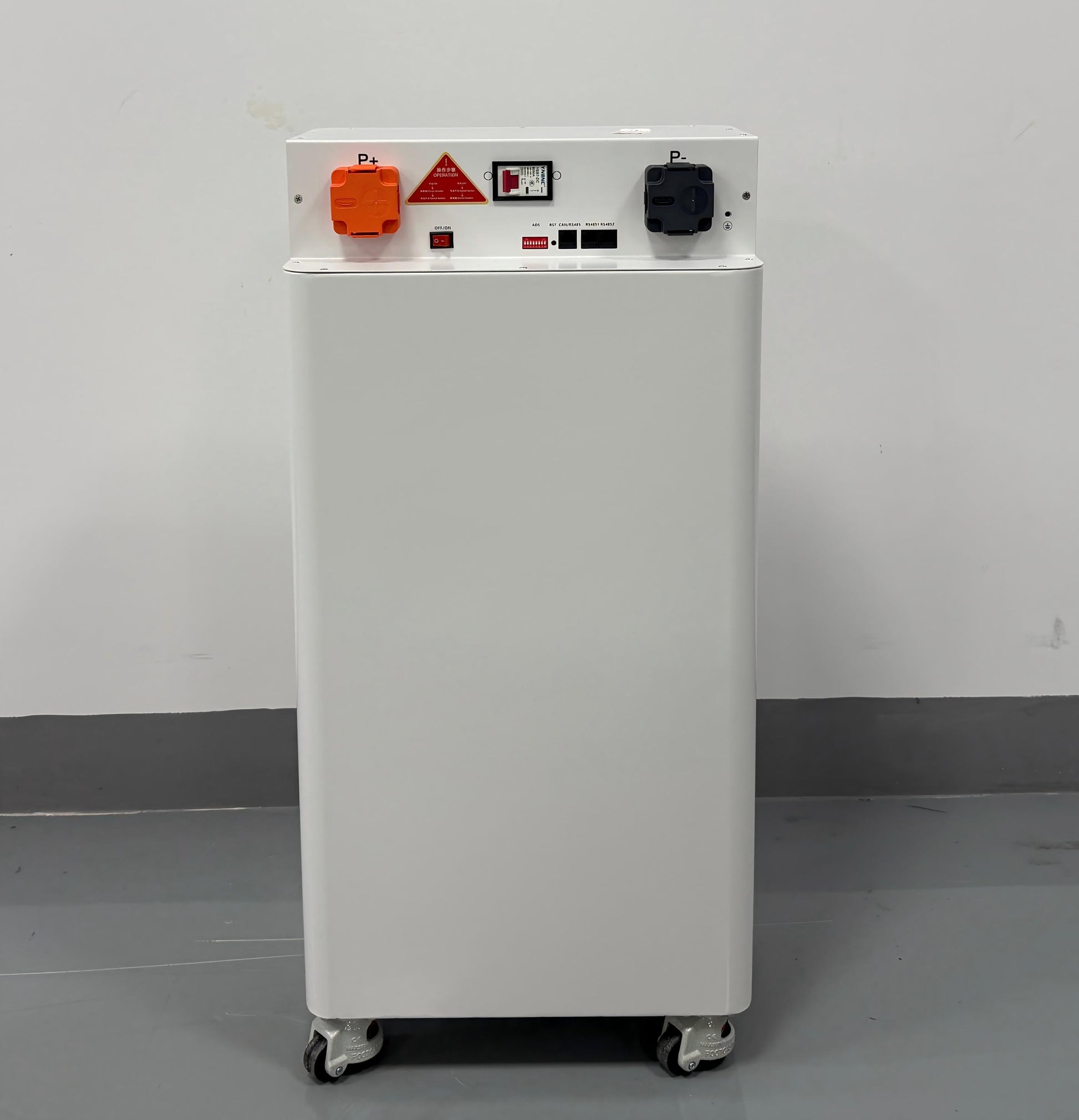

Tier 2 safeguards ：200A Air Circuit Breaker: Your Instant Firewall
Air circuit breakers use air as an arc extinguishing medium. When a circuit fails, they can quickly cut off the current and protect the circuit and equipment. Compared with other circuit breakers, they have higher breaking capacity and more precise adjustable parameters. Cuts Power in 0.1m (faster than a lightning strike!)

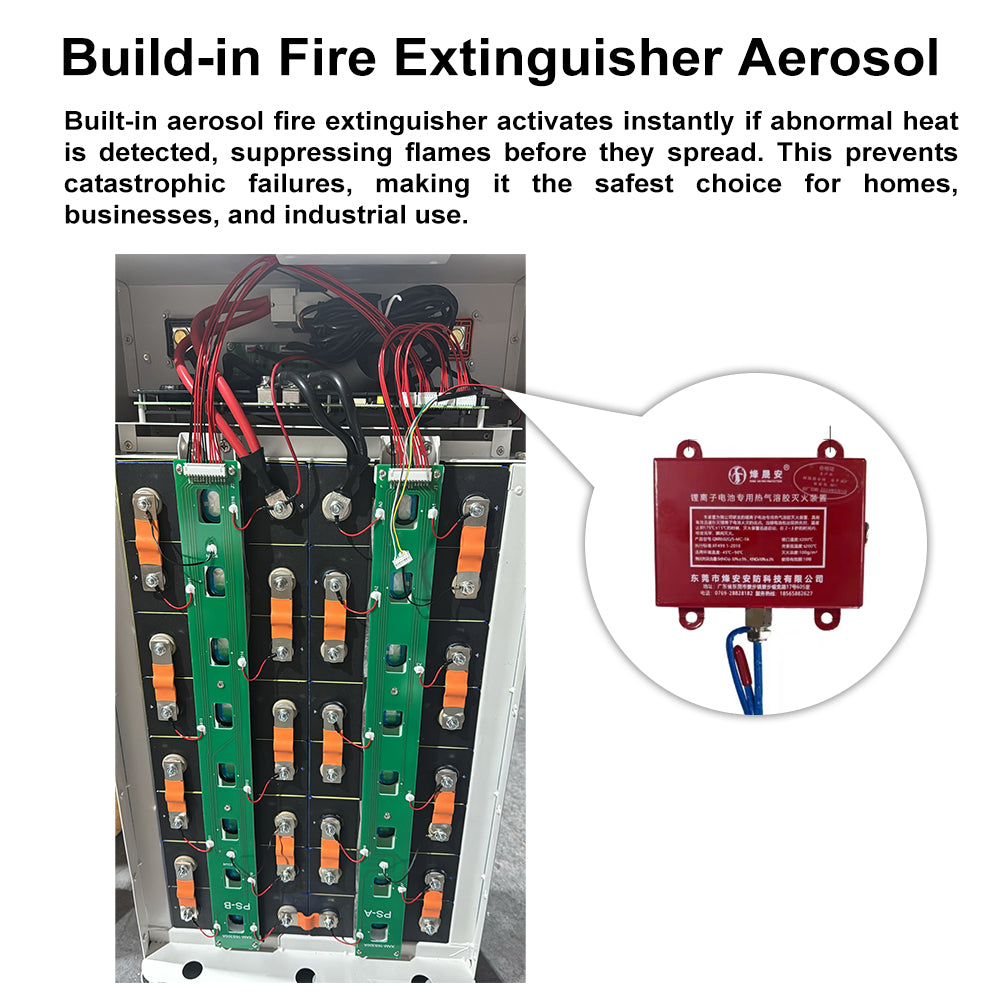

Tier 2 safeguards ：Built-in fire extinguisher
In the event of prolonged overloads or a short circuit in the BMS or a cell, the built-in automatic fire-suppression system triggers to extinguish any ignition and protect users and property. It also responds to externally generated heat or nearby fires by activating at elevated temperatures to limit thermal runaway and minimize battery damage.
The aerosol fire extinguisher in the battery pack activates automatically via a heat-sensitive trigger, releasing ultra-fine solid particles (usually potassium salts) that quickly vaporize in high heat.
Compared to traditional agents, aerosol extinguishers work without oxygen (crucial for lithium battery thermal runaway), are non-conductive (won’t short circuits), penetrate deeply into battery cells, leave minimal residue, and react within milliseconds, protecting sensitive BMS systems.
Why Choose Factory-Assembled Battery Systems?
✅ Save Time & Hassle
No complex self-installation required
✅ Zero Installation Errors
Prevents system damage caused by DIY assembly mistakes

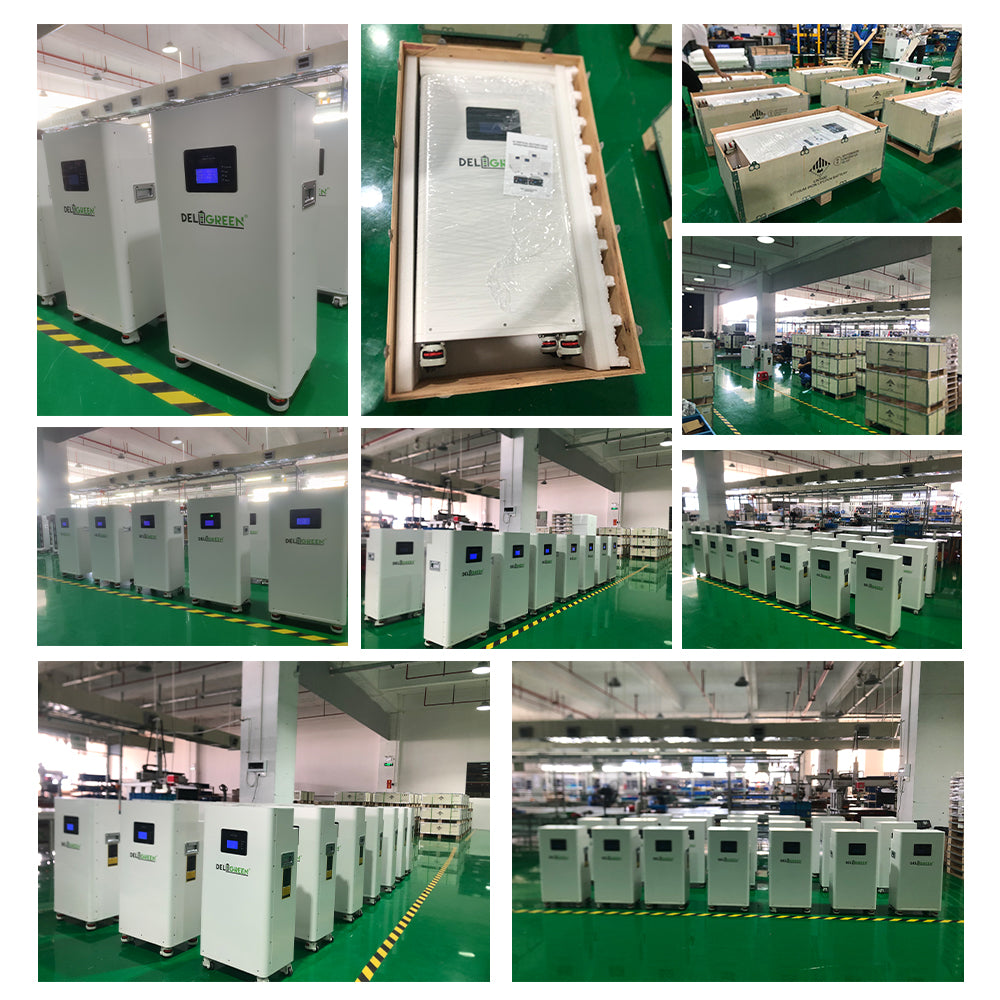

✅ Factory-Installed Reliability
Precision assembly enhanced structural integrity and full compliance with the user manual
✅ Pre-Delivery Testing
Pre-configured and tested before delivery to ensure optimal performance

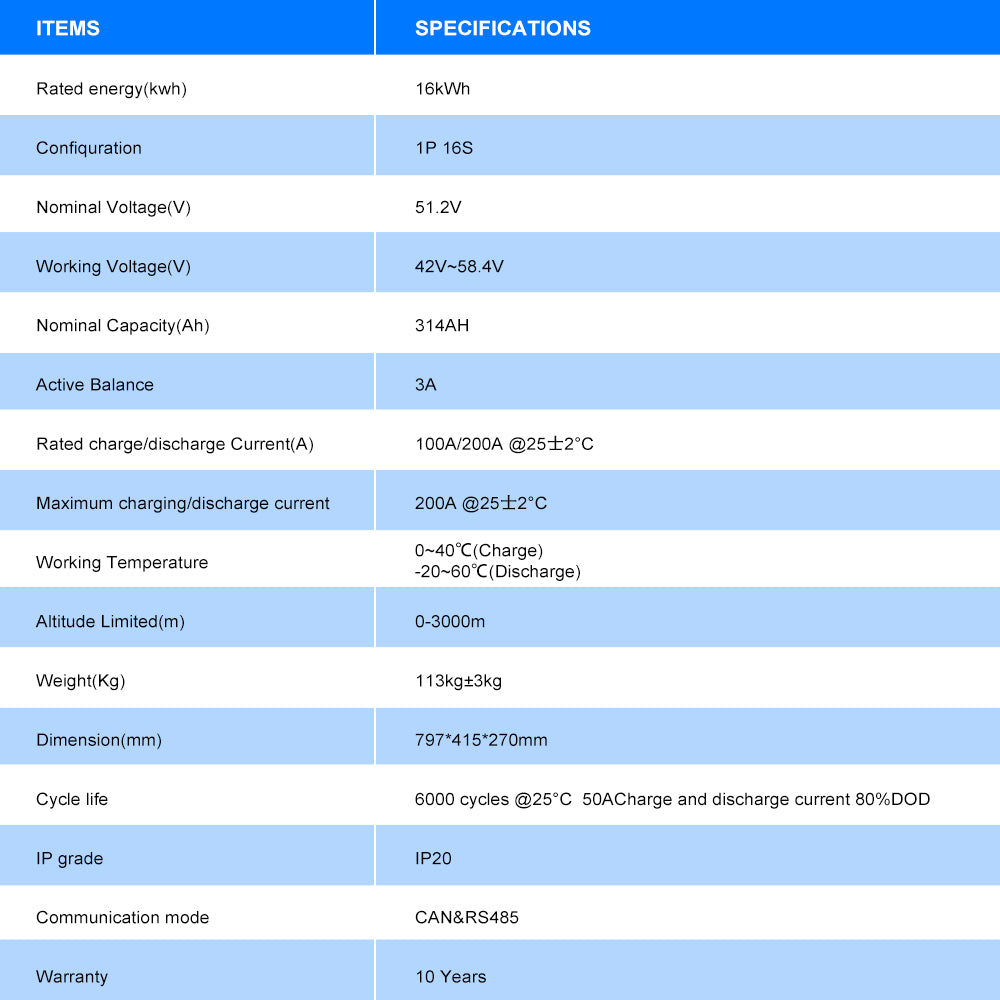

| Parameter | Specification |
|---|---|
| Rated Energy (kWh) | 16kWh |
| Configuration | IP 16S |
| Nominal Voltage (V) | 51.2 V |
| Working Voltage Range (V) | 42 V ~ 58.4 V |
| Nominal Capacity (Ah) | 314 Ah |
| Rated Charge/Discharge Current (A) | 100 A (Charge) / 200 A (Discharge) @ 25±2°C |
| Maximum Continuous Charge Current (A) | 200 A @ 25±2°C |
| Maximum Continuous Discharge Current (A) | 200 A @ 25±2°C |
| Operating Temperature (°C) |
Charge: 0 ~ 40°C Discharge: -20 ~ 60°C |
| Humidity Range (%) | 5% ~ 95% |
| Altitude Limit (m) | 0 ~ 3000 m |
| Weight (kg) | 32kg |

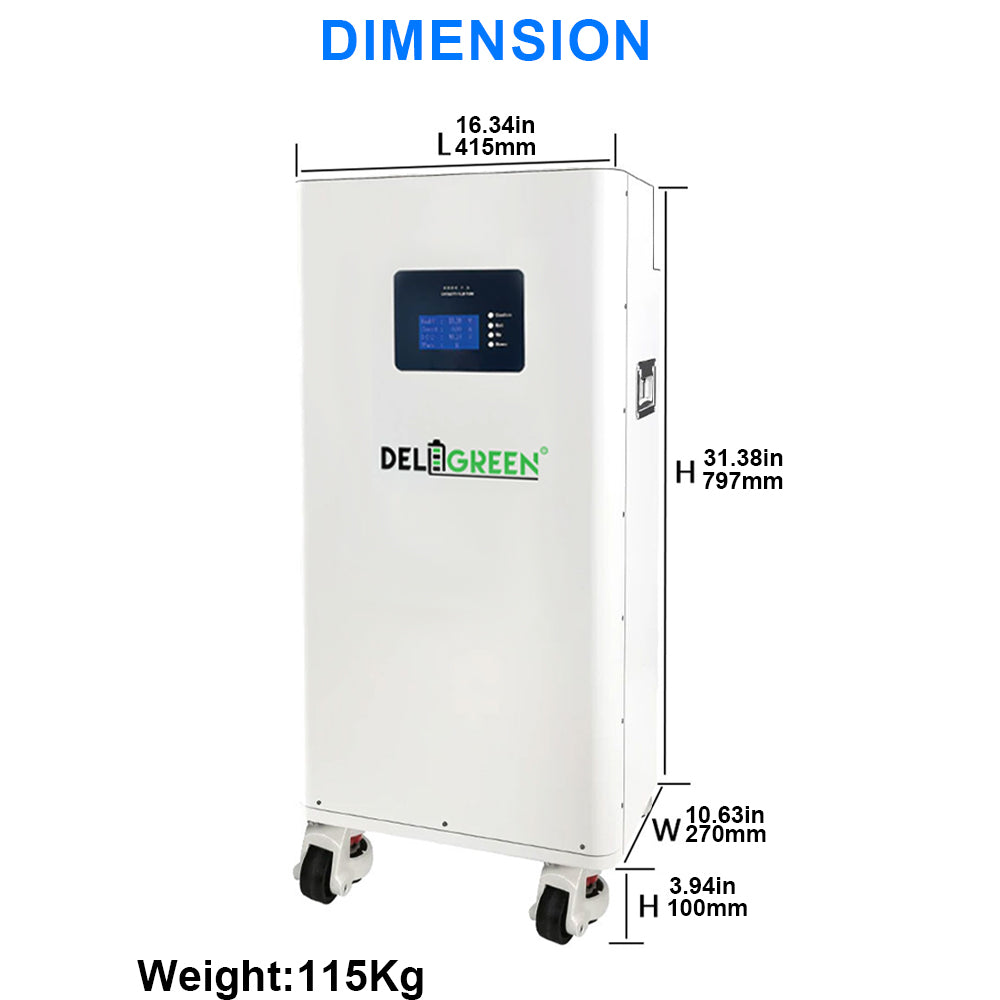

| Dimensions (mm) | 797 × 415 × 270 mm |
| Storage Temperature/Humidity |
Within 1 month: -10°C ~ 35°C Within 3 months: 25±2°C, 65%±20% RH |
| Cycle Life | 8000 cycles @ 25°C, 50A charge/discharge current, 80% DOD |
| IP Rating | IP20 |

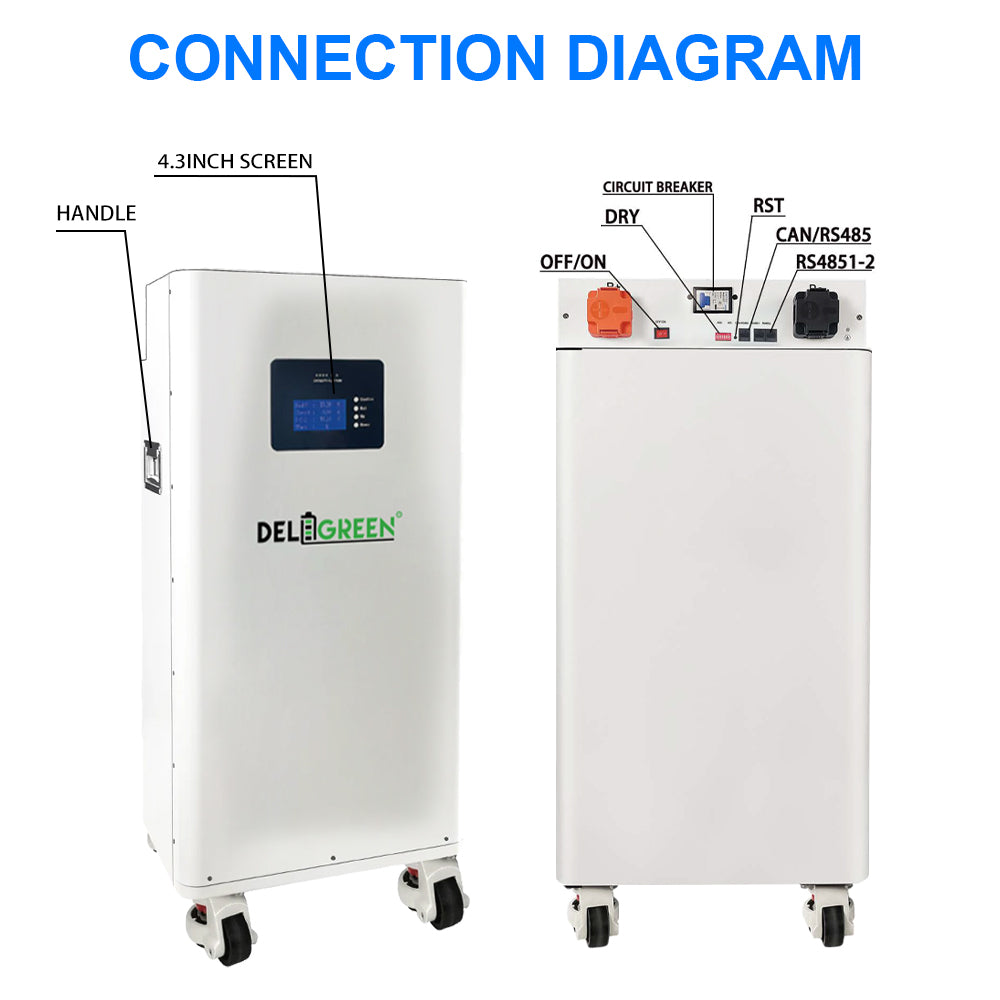

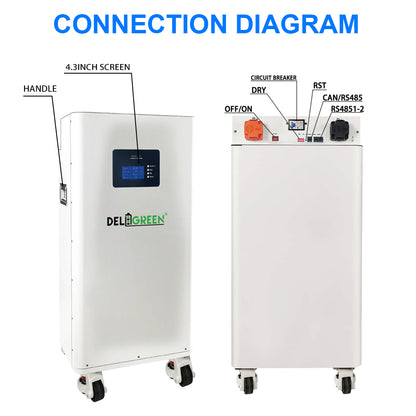

| Communication Interface | CAN & RS485 |
Other features
📊 Real-Time Mastery:
- 16-Cell Precision Monitoring: ±20mV voltage accuracy | ±2°C temperature tracking
-

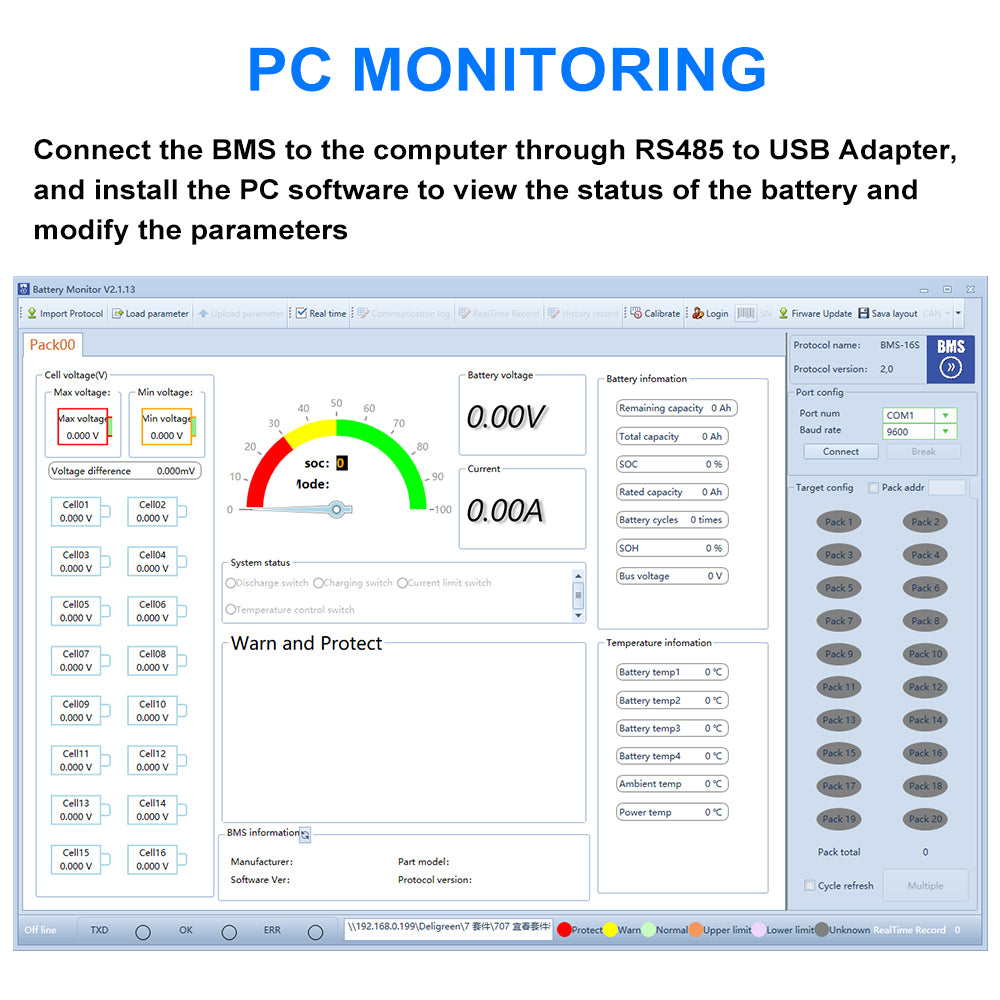

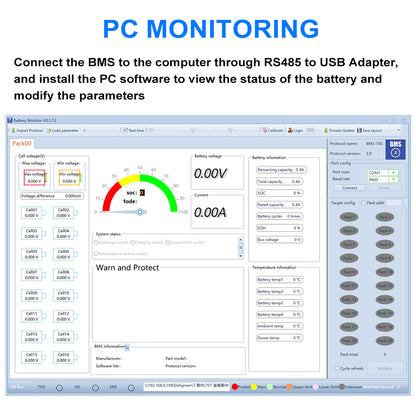

AR Dashboard: View live data via Bluetooth/RS485:
🔋 SOC: 99.1% accuracy | ⚡ 200A max continuous discharge | 🌡️ 4 temp sensors
“Like having a NASA control panel for your basement!”
🔄 Self-Healing Balance:
- Smart Equalization: Charges weak cells first, extends lifespan by 30%
- 0.010V Trigger Sensitivity: Fixes imbalances before you notice
- 3 Modes: Charge/static/standby balancing (set via app!)
🌐 Remote Control Wizardry:

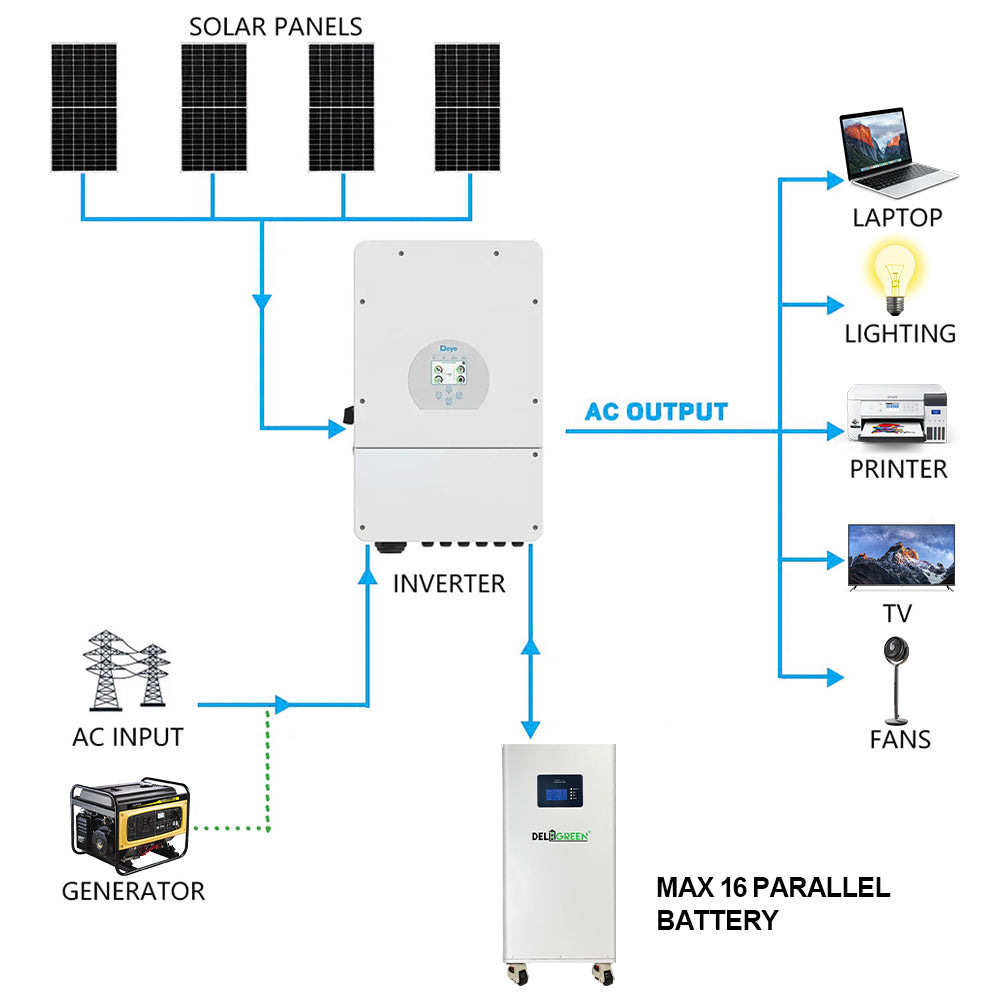

- CAN/RS485 Protocols: Syncs with solar inverters (Victron, SMA), home automation
- 500+ Fault Logs: Diagnose issues like a pro—“Why did my bill spike last Tuesday? Solved.”
